Tutorial 2 - Spatial Network analysis

Lesson objectives

This tutorial focuses on spatial networks and learn how to construct a routable directed graph for Networkx and find shortest paths along the given street network based on travel times or distance by car.

Tutorial

In this tutorial we will focus on a network analysis methods that relate to way-finding. Finding a shortest path from A to B using a specific street network is a very common spatial analytics problem that has many practical applications.

Python provides easy to use tools for conducting spatial network analysis. One of the easiest ways to start is to use a library called Networkx which is a Python module that provides a lot tools that can be used to analyze networks on various different ways. It also contains algorithms such as Dijkstra’s algorithm or A* algoritm that are commonly used to find shortest paths along transportation network.

Next, we will learn how to do spatial network analysis in practice.

Typical workflow for routing

If you want to conduct network analysis (in any programming language) there are a few basic steps that typically needs to be done before you can start routing. These steps are:

1. Retrieve data (such as street network from OSM or Digiroad + possibly transit data if routing with PT).

2. Modify the network by adding/calculating edge weights (such as travel times based on speed limit and length of the road segment).

3. Build a routable graph for the routing tool that you are using (e.g. for NetworkX, igraph or OpenTripPlanner).

4. Conduct network analysis (such as shortest path analysis) with the routing tool of your choice.

1. Retrieve data

As a first step, we need to obtain data for routing. osmnx library makes it really easy to retrieve routable networks from OpenStreetMap (OSM) with different transport modes (walking, cycling and driving).

Let’s first extract OSM data for Helsinki city centre that are drivable by car. In osmnx, we can use a function called ox.graph_from_place() which retrieves data from OpenStreetMap. It is possible to specify what kind of roads should be retrieved from OSM with network_type -parameter (supports e.g. walk, drive, bike, all). In the following, we fetch all the drivable roads from “Kamppi, Helsinki”:

import osmnx as ox
import geopandas as gpd
import pandas as pd
import networkx as nx

# The area of interest
query = "Kamppi, Helsinki"

# We will use test data for Helsinki that comes with pyrosm
G = ox.graph_from_place(query, network_type="drive", simplify=False)

type(G)

/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/constructive.py:181: RuntimeWarning: invalid value encountered in buffer
  return lib.buffer(
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/predicates.py:798: RuntimeWarning: invalid value encountered in intersects
  return lib.intersects(a, b, **kwargs)
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/set_operations.py:340: RuntimeWarning: invalid value encountered in union
  return lib.union(a, b, **kwargs)
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/predicates.py:798: RuntimeWarning: invalid value encountered in intersects
  return lib.intersects(a, b, **kwargs)
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/set_operations.py:340: RuntimeWarning: invalid value encountered in union
  return lib.union(a, b, **kwargs)

networkx.classes.multidigraph.MultiDiGraph

Okay, as we can see we have now fetched a routable graph out of OpenStreetMap data of ours which is something called MultiDiGraph object of networkx library. Let’s remind us about the basic elements of a graph that we went through in the lecture slides:

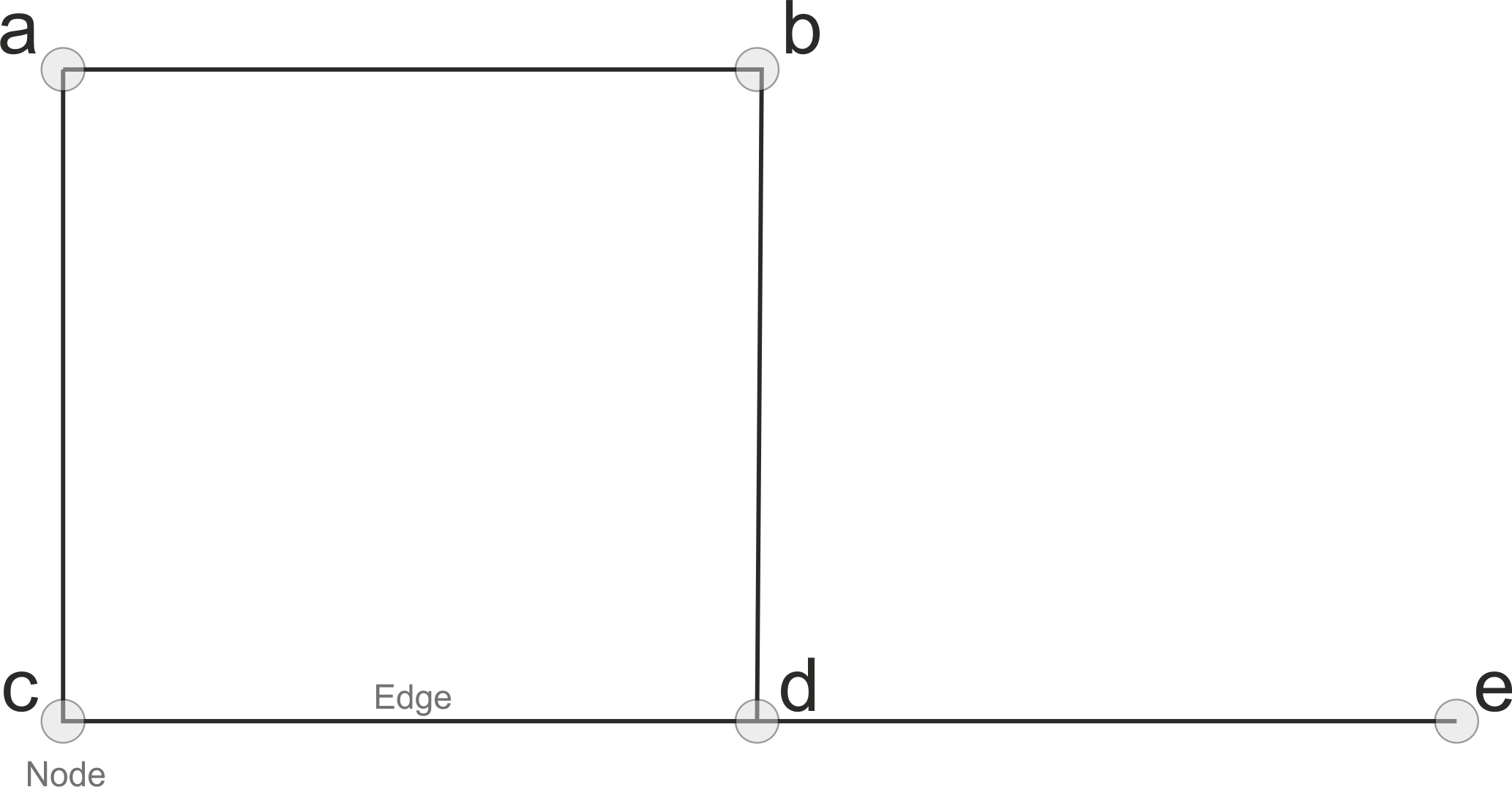

So basically this graph G is made out of nodes and edges. We can easily extract the nodes and edges out of this graph by using osmnx as follows:

# Extract the nodes and edges
nodes, edges = ox.graph_to_gdfs(G)
edges.head()

			osmid	highway	lanes	maxspeed	name	oneway	reversed	length	bridge	ref	junction	width	access	geometry
u	v	key
25216594	1372425721	0	23717777	primary	2	40	Porkkalankatu	True	False	10.403735	NaN	NaN	NaN	NaN	NaN	LINESTRING (24.92106 60.16479, 24.92087 60.16479)
	352516647	0	23856784	primary	2	40	Mechelininkatu	True	False	26.267053	NaN	NaN	NaN	NaN	NaN	LINESTRING (24.92106 60.16479, 24.92095 60.16456)
25216597	1011525999	0	4229494	secondary	2	50	Porkkalankatu	True	False	22.518987	yes	51	NaN	NaN	NaN	LINESTRING (24.92147 60.16468, 24.92106 60.16466)
25216605	25291516	0	8035294	secondary	2	50	Porkkalankatu	True	False	44.890662	yes	NaN	NaN	NaN	NaN	LINESTRING (24.92149 60.16462, 24.92229 60.16469)
25238874	336192701	0	29977177	primary	3	40	Mechelininkatu	True	False	6.100724	NaN	NaN	NaN	NaN	NaN	LINESTRING (24.92103 60.16366, 24.92104 60.16361)

ax = edges.plot()
ax = nodes.plot(ax=ax, color="red", markersize=3.5)

Okay, now we have drivable roads as a GeoDataFrame for the Kamppi district of Helsinki. If you look at the GeoDataFrame, we can see that osmnx has also calculated us the length of each road segment (presented in meters). The geometries are presented here as LineString objects.

In OSM, the information about the allowed direction of movement is stored in column oneway. Let’s take a look what kind of values we have in that column:

edges["oneway"].unique()

array([ True, False])

As we can see the unique values in that column are True and False. This information can be used to construct a directed graph for routing by car. For walking and cycling, you typically want create a bidirectional graph, because the travel is typically allowed in both directions at least in Finland. Notice, that the rules vary by country, e.g. in Copenhagen you have oneway rules also for bikes but typically each road have the possibility to travel both directions (you just need to change the side of the road if you want to make a U-turn). Column maxspeed contains information about the speed limit for given road:

edges["maxspeed"].unique()

array(['40', '50', '30', nan], dtype=object)

As we can see, there are also None values in the data, meaning that the speed limit has not been tagged for some roads. This is typical, and often you need to fill the non existing speed limits yourself. This can be done by taking advantage of the road class that is always present in column highway:

edges["highway"].unique()

array(['primary', 'secondary', 'tertiary', 'unclassified', 'residential',
       'living_street', 'primary_link'], dtype=object)

Based on these values, we can make assumptions that e.g. residential roads in Helsinki have a speed limit of 30 kmph. Hence, this information can be used to fill the missing values in maxspeed.

The second dataset that we extracted from the graph are nodes:

nodes.head()

	y	x	street_count	railway	highway	ref	geometry
osmid
25216594	60.164794	24.921057	4	NaN	NaN	NaN	POINT (24.92106 60.16479)
25216597	60.164683	24.921468	2	NaN	NaN	NaN	POINT (24.92147 60.16468)
25216605	60.164620	24.921489	2	NaN	NaN	NaN	POINT (24.92149 60.16462)
25238874	60.163663	24.921029	4	tram_level_crossing	NaN	NaN	POINT (24.92103 60.16366)
25238883	60.163452	24.921441	2	NaN	crossing	NaN	POINT (24.92144 60.16345)

As we can see, the nodes GeoDataFrame contains information about the coordinates of each node as well as a unique id for each node. These id values are used to determine the connectivity in our network. Hence, pyrosm has also added two columns to the edges GeoDataFrame that specify from and to ids for each edge. Column u contains information about the from-id and column v about the to-id accordingly:

Okay, as we can see now we have both the roads (i.e. edges) and the nodes that connect the street elements together (in red color in the previous figure) that are typically intersections. However, we can see that many of the nodes are in locations that are clearly not intersections. This is intented behavior to ensure that we have full connectivity in our network. We can at later stage clean and simplify this network by merging all roads that belong to the same link (i.e. street elements that are between two intersections) which also reduces the size of the network.

Note

In OSM, the street topology is typically not directly suitable for graph traversal due to missing nodes at intersections which means that the roads are not splitted at those locations. The consequence of this, is that it is not possible to make a turn if there is no intersection present in the data structure. Hence, pyrosm will separate all road segments/geometries into individual rows in the data.

2. Modify the data

At this stage, we have the necessary components to build a routable graph (nodes and edges) based on distance. However, in real life the network distance is not the best cost metric to use, because the shortest path (based on distance) is not necessarily always the optimal route in terms of travel time. Time is typically the measure that people value more (plus it is easier to comprehend), so at this stage we want to add a new cost attribute to our edges GeoDataFrame that converts the metric distance information to travel time (in seconds) based on following formula:

• <distance-in-meters> / (<speed-limit-kmph> / 3.6)

Before we can do this calculation, we need to ensure that all rows in maxspeed column have information about the speed limit. Let’s check the value counts of the column and also include information about the NaN values with dropna parameter:

# Count values
edges["maxspeed"].value_counts(dropna=False)

maxspeed
30     1666
40       93
NaN      52
50       16
Name: count, dtype: int64

As we can see, the rows which do not contain information about the speed limit is the second largest group in our data. Hence, we need to apply a criteria to fill these gaps. We can do this based on following “rule of thumb” criteria in Finland (notice that these vary country by country):

Road class	Speed limit within urban region	Speed limit outside urban region
motorway	100	120
motorway_link	80	80
trunk	60	100
trunk_link	60	60
primary	50	80
primary_link	50	50
secondary	50	50
secondary_link	50	50
tertiary	50	60
tertiary_link	50	50
unclassified	50	80
unclassified_link	50	50
residential	50	80
living_street	20	NA
service	30	NA
other	50	80

For simplicity, we can consider that all the roads in Helsinki Region follows the within urban region speed limits, although this is not exactly true (the higher speed limits start somewhere at the outer parts of the city region). For making the speed limit values more robust / correct, you could use data about urban/rural classification which is available in Finland from Finnish Environment Institute. Let’s first convert our maxspeed values to integers using astype() method:

edges["maxspeed"] = edges["maxspeed"].astype(float).astype(pd.Int64Dtype())
edges["maxspeed"].unique()

<IntegerArray>
[40, 50, 30, <NA>]
Length: 4, dtype: Int64

As we can see, now the maxspeed values are stored in integer format inside an IntegerArray, and the None values were converted into pandas.NA objects that are assigned with <NA>. Now we can create a function that returns a numeric value for different road classes based on the criteria in the table above:

def road_class_to_kmph(road_class):
    """
    Returns a speed limit value based on road class,
    using typical Finnish speed limit values within urban regions.
    """
    if road_class == "motorway":
        return 100
    elif road_class == "motorway_link":
        return 80
    elif road_class in ["trunk", "trunk_link"]:
        return 60
    elif road_class == "service":
        return 30
    elif road_class == "living_street":
        return 20
    else:
        return 50

Now we can apply this function to all rows that do not have speed limit information:

mask = edges["maxspeed"].isnull()

mask

u            v           key
25216594     1372425721  0      False
             352516647   0      False
25216597     1011525999  0      False
25216605     25291516    0      False
25238874     336192701   0      False
                                ...
11874247042  573263641   0      False
12124374263  775997500   0      False
             3228706311  0      False
12152015326  1371751521  0      False
             3205236838  0      False
Name: maxspeed, Length: 1827, dtype: bool

# Separate rows with / without speed limit information
mask = edges["maxspeed"].isnull()
edges_without_maxspeed = edges.loc[mask].copy()
edges_with_maxspeed = edges.loc[~mask].copy()

# Apply the function and update the maxspeed
edges_without_maxspeed["maxspeed"] = edges_without_maxspeed["highway"].apply(road_class_to_kmph)
edges_without_maxspeed.head(5).loc[:, ["maxspeed", "highway"]]

			maxspeed	highway
u	v	key
60072524	303089522	0	20	living_street
60278325	303089524	0	20	living_street
149030036	149030037	0	50	residential
149030037	149030036	0	50	residential
295929863	7690715766	0	20	living_street

Okay, as we can see now the maxspeed value have been updated according our criteria, and e.g. the living_street road class have been given the speed limit 20 kmph. Now we can recreate the edges GeoDataFrame by combining the two frames:

edges = pd.concat([edges_with_maxspeed, edges_without_maxspeed])
edges["maxspeed"].unique()

<IntegerArray>
[40, 50, 30, 20]
Length: 4, dtype: Int64

Great, now all of our edges have information about the speed limit. We can also visualize them:

# Convert the value into regular integer Series (the plotting requires having Series instead of IntegerArray)
edges["maxspeed"] = edges["maxspeed"].astype(int)

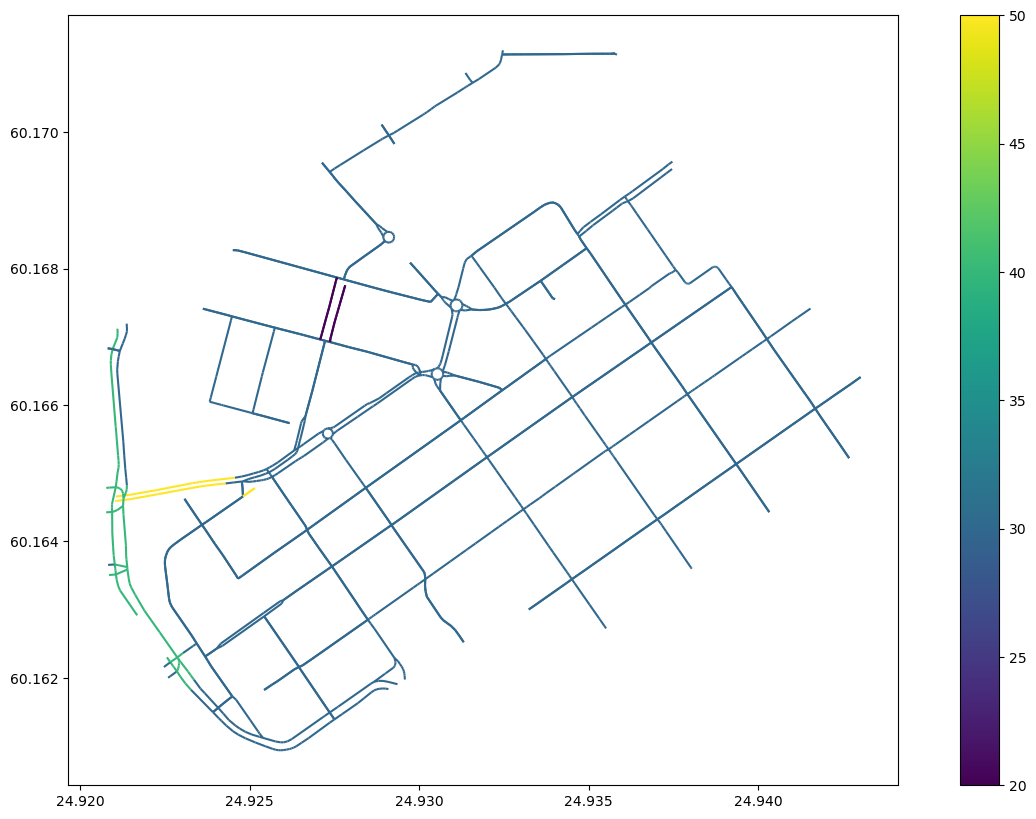

ax = edges.plot(column="maxspeed", figsize=(16,10), legend=True)

Finally, we can calculate the travel time in seconds using the formula we saw earlier and add that as a new cost attribute for our network:

edges["travel_time_seconds"] = edges["length"] / (edges["maxspeed"]/3.6)
edges.iloc[0:10, -4:]

			width	access	geometry	travel_time_seconds
u	v	key
25216594	1372425721	0	NaN	NaN	LINESTRING (24.92106 60.16479, 24.92087 60.16479)	0.936336
	352516647	0	NaN	NaN	LINESTRING (24.92106 60.16479, 24.92095 60.16456)	2.364035
25216597	1011525999	0	NaN	NaN	LINESTRING (24.92147 60.16468, 24.92106 60.16466)	1.621367
25216605	25291516	0	NaN	NaN	LINESTRING (24.92149 60.16462, 24.92229 60.16469)	3.232128
25238874	336192701	0	NaN	NaN	LINESTRING (24.92103 60.16366, 24.92104 60.16361)	0.549065
	1519889266	0	NaN	NaN	LINESTRING (24.92103 60.16366, 24.92083 60.16366)	1.306234
25238883	568147264	0	NaN	NaN	LINESTRING (24.92144 60.16345, 24.9214 60.16359)	1.384929
25238899	568147281	0	NaN	NaN	LINESTRING (24.92327 60.16204, 24.92319 60.16209)	0.682915
25238944	319482931	0	NaN	NaN	LINESTRING (24.92129 60.16463, 24.92127 60.1647)	0.729125
	321216337	0	NaN	NaN	LINESTRING (24.92129 60.16463, 24.92136 60.16472)	1.007092

Excellent! Now our GeoDataFrame has all the information we need for creating a graph that can be used to conduct shortest path analysis based on length or travel time. Notice that here we assume that the cars can drive with the same speed as what the speed limit is. Considering the urban dynamics and traffic congestion, this assumption might not hold, but for simplicity, we assume so in this tutorial.

3. Build a routable graph from modified edges with osmnx

We can use osmnx library to easily build a directed graph. Let’s see how we can create a routable NetworkX graph using osmnx with one command:

G = ox.graph_from_gdfs(gdf_nodes=nodes, gdf_edges=edges)
G

<networkx.classes.multidigraph.MultiDiGraph at 0x1698d7fd0>

Now we have a similar routable graph as in the beginning, but now the network edges contain information about the speed limit for all edges. We can easily visualize the graph with osmnx as follows:

import osmnx as ox
ox.plot_graph(G)

(<Figure size 800x800 with 1 Axes>, <Axes: >)

4. Routing with NetworkX

Now we have everything we need to start routing with NetworkX (based on driving distance or travel time). But first, let’s again go through some basics about routing.

Basic logic in routing

Most (if not all) routing algorithms work more or less in a similar manner. The basic steps for finding an optimal route from A to B, is to:

1. Find the nearest node for origin location * (+ get info about its node-id and distance between origin and node)

2. Find the nearest node for destination location * (+ get info about its node-id and distance between origin and node)

3. Use a routing algorithm to find the shortest path between A and B

4. Retrieve edge attributes for the given route(s) and summarize them (can be distance, time, CO2, or whatever)

* in more advanced implementations you might search for the closest edge

This same logic should be applied always when searching for an optimal route between a single origin to a single destination, or when calculating one-to-many -type of routing queries (producing e.g. travel time matrices).

Find the optimal route between two locations

Next, we will learn how to find the shortest path between two locations using Dijkstra’s algorithm.

First, let’s find the closest nodes for two locations that are located in the area. OSMnx provides a handly function for geocoding an address ox.geocode(). We can use that to retrieve the x and y coordinates of our origin and destination.

# OSM data is in WGS84 so typically we need to use lat/lon coordinates when searching for the closest node

# Origin
orig_address = "Ruoholahdenkatu 24, Helsinki"
orig_y, orig_x = ox.geocode(orig_address)  # notice the coordinate order (y, x)!

# Destination
dest_address = "Annankatu 18, Helsinki"
dest_y, dest_x = ox.geocode(dest_address)

print("Origin coords:", orig_x, orig_y)
print("Destination coords:", dest_x, dest_y)

Origin coords: 24.9246625 60.1641351
Destination coords: 24.9381701 60.1658212

Okay, now we have coordinates for our origin and destination.

Find the nearest nodes

Next, we need to find the closest nodes from the graph for both of our locations. For calculating the closest point we use ox.distance.nearest_nodes() -function and specify return_dist=True to get the distance in meters.

# Find the closest nodes for origin and destination
orig_node_id, dist_to_orig = ox.distance.nearest_nodes(G, X=orig_x, Y=orig_y, return_dist=True)
dest_node_id, dist_to_dest = ox.distance.nearest_nodes(G, X=dest_x, Y=dest_y, return_dist=True)

print("Origin node-id:", orig_node_id, "and distance:", dist_to_orig, "meters.")
print("Destination node-id:", dest_node_id, "and distance:", dist_to_dest, "meters.")

Origin node-id: 10695632364 and distance: 42.309128440708086 meters.
Destination node-id: 3395239427 and distance: 21.53504631607822 meters.

Now we are ready to start the actual routing with NetworkX.

Find the fastest route by distance / time

Now we can do the routing and find the shortest path between the origin and target locations by using the dijkstra_path() function of NetworkX. For getting only the cumulative cost of the trip, we can directly use a function dijkstra_path_length() that returns the travel time without the actual path.

With weight -parameter we can specify the attribute that we want to use as cost/impedance. We have now three possible weight attributes available: 'length' and 'travel_time_seconds'.

• Let’s first calculate the routes between locations by walking and cycling, and also retrieve the travel times

# Calculate the paths
metric_path = nx.dijkstra_path(G, source=orig_node_id, target=dest_node_id, weight='length')
time_path = nx.dijkstra_path(G, source=orig_node_id, target=dest_node_id, weight='travel_time_seconds')

# Get also the actual travel times (summarize)
travel_length = nx.dijkstra_path_length(G, source=orig_node_id, target=dest_node_id, weight='length')
travel_time = nx.dijkstra_path_length(G, source=orig_node_id, target=dest_node_id, weight='travel_time_seconds')

metric_path == time_path

True

travel_length

1024.374734725627

travel_time

122.92496816707522

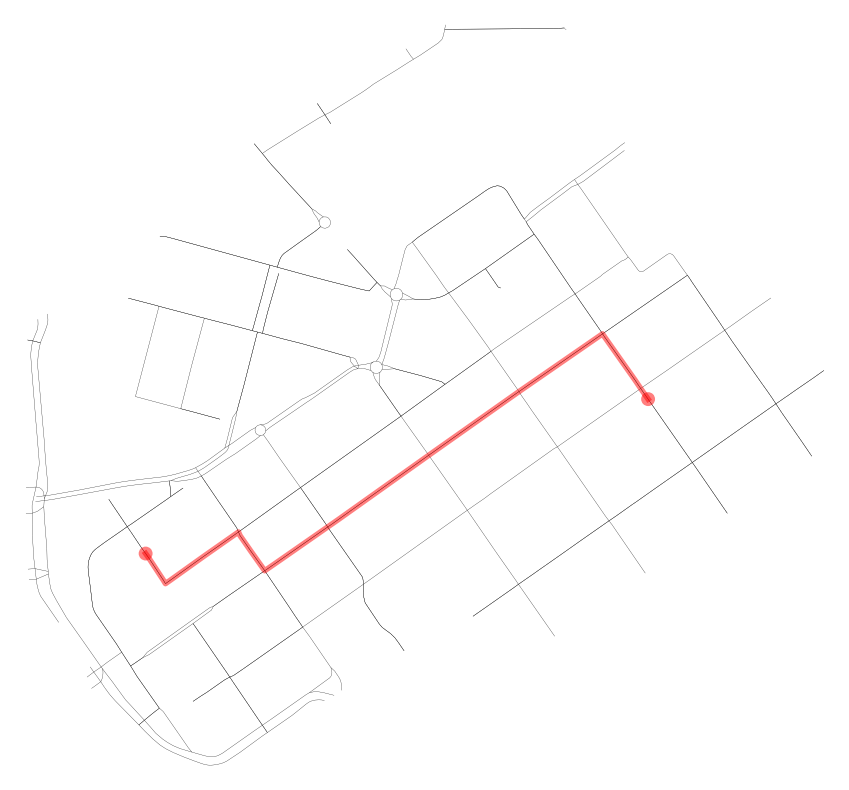

Okay, that was it! Let’s now see what we got as results by visualizing the results.

For visualization purposes, we can use a handy function again from OSMnx called ox.plot_graph_route() that plots the route in a simple map:

# Shortest path based on distance
fig, ax = ox.plot_graph_route(G, metric_path,
                              edge_linewidth=0.2, node_size=0, bgcolor="white", edge_color="black", figsize=(14,10))

# Print some useful information as well
print(f"Shortest path distance {travel_length: .1f} meters.")

Shortest path distance  1024.4 meters.

fig, ax = ox.plot_graph_route(G, time_path,
                             edge_linewidth=0.2, node_size=0, bgcolor="white", edge_color="black", figsize=(14,10))

# Print some useful information as well
print(f"Shortest path time {travel_time/60: .1f} minutes.")

Shortest path time  2.0 minutes.

Great! Now we have successfully found the optimal route between our origin and destination and we also have estimates about the travel time that it takes to travel between the locations by driving. As we can see, the route optimized based on travel time and distance were exactly the same which is natural, as the network here is relatively small and there are no big differences in the speed limits. However, with larger networks, you might get alternating routes as travelling e.g. via ring roads is typically faster than driving throught the city (as an example).
